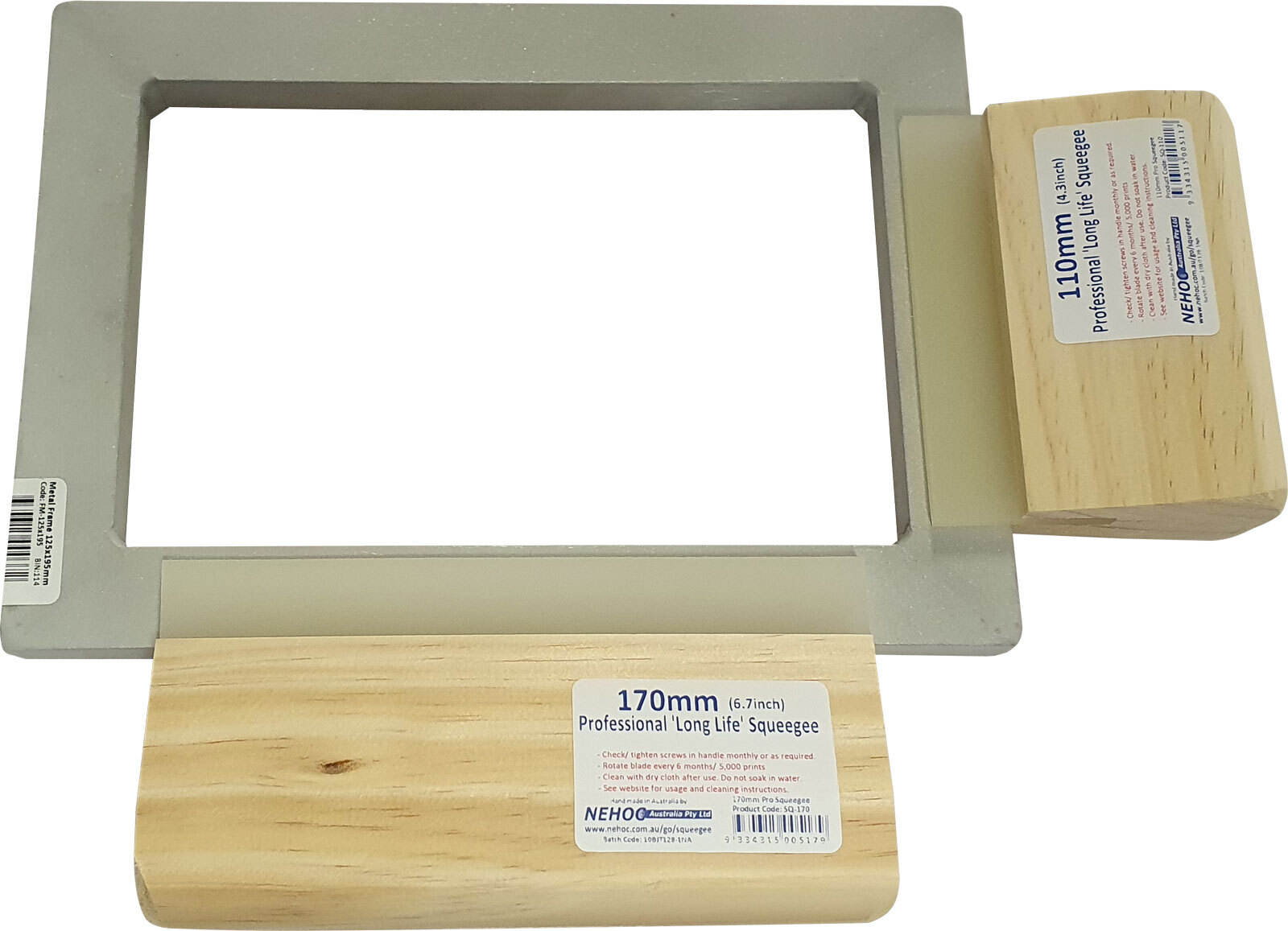

Metal Frame ID: 125x195mm
Direct and 'off contact' screen printing, plain no tape.
NEHOCSKU: FM-125x195
With internal dimensions of 125 x 195mm, this metal frame is ideal for customs smaller designs created on the EZIscreen, IkonArt, MiScreen or GP100 systems.
Supplied plain with no tape for lower cost, simply apply double sided tape and mount.
For freehand stencilling applications, EZIscreen Stencil film may be attached using Screen Masking Tape only as no tension is required.
Recommended for off contact printing, a metal frame provided the strength required when elevated without flexing.
Recommended Print Area
Direct Printing: Allow 1cm top and bottom for squeegee set down/ pick up. Allow minimum 5mm each side of squeegee for ink run off.
- Portrait: 115 x 175mm
- Landscape: 185 x 105mm
Off Contact/ Elevated Printing: As the screen is elevated, the edges are unable to travel downwards to meet the item, the available print size decreases. General rule is print area is only 1/2 screen size, however this will vary on design size and item being printed.
When printing off contact/ elevated additional Screen Masking Tape should also be applied around the outside of the film/ mesh for additional adhesion to double sided tape.
- Portrait: Approx. 60 x 95mm
- Landscape: Approx. 100 x 55mm
Attaching EZIscreen/ IkonArt Textile and Stencil Mesh
T-K12 - 12mm double sided tissue tape is recommended.
Instructions for mounting to frames is detailed on information Sheet #6, available for download here . .
Attaching RISO Digital Mesh
T-R12 - 12mm Red MaxiBond double sided tape is recommended.
T-T18 - 18mm Double sided tissue tape is also suitable. (12mm not recommended for RISO 'P' type Digital Mesh.)
Instructions for mounting RISO Mesh to a frame is detailed on information Sheet #6, available for download here . .
Internal Dimensions: 125 x 195mm
External Dimensions: 180 x 250mm
Thickness: 15mm
Material: Aluminium (sand blasted finish top side/ smooth finish bottom side)
Taped: No
Dimensions are approximate manufacture size with +/-5mm tolerance.
Recommended Max Print size
- Direct Portrait: 115 x 175mm
- Direct Landscape: 185 x 105mm
- Elevated Portrait: Approx. 60 x 95mm
- Elevated Landscape: Approx. 100 x 55mm
| SKU | FM-125x195 |
| Barcode # | 9334315000372 |
| Brand | NEHOC |
| Shipping Weight | 0.1700kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.015m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.000675000m3 |
| Unit Of Measure | ea |
| Type | Plain No Tape |
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law (ACL). You are entitled to a replacement or refund for a major failure. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Metal Frames are a hand made from cut and machines parts. Final dimensions may vary by a small tolerance of +/-5mm.
