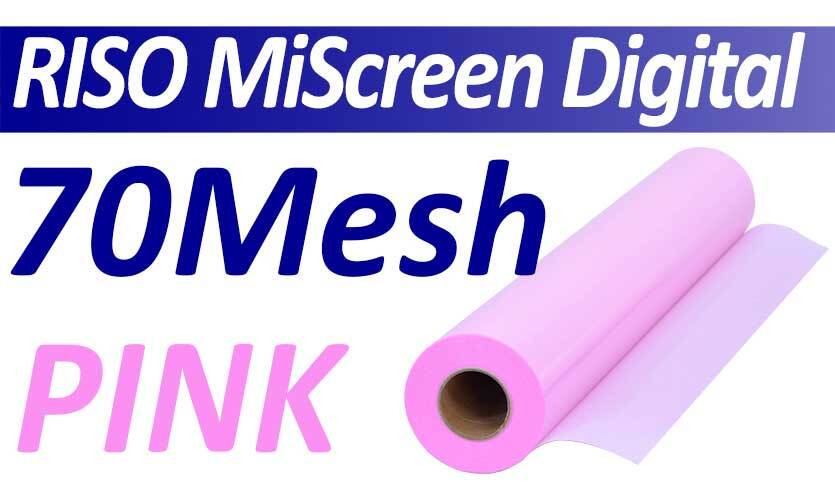

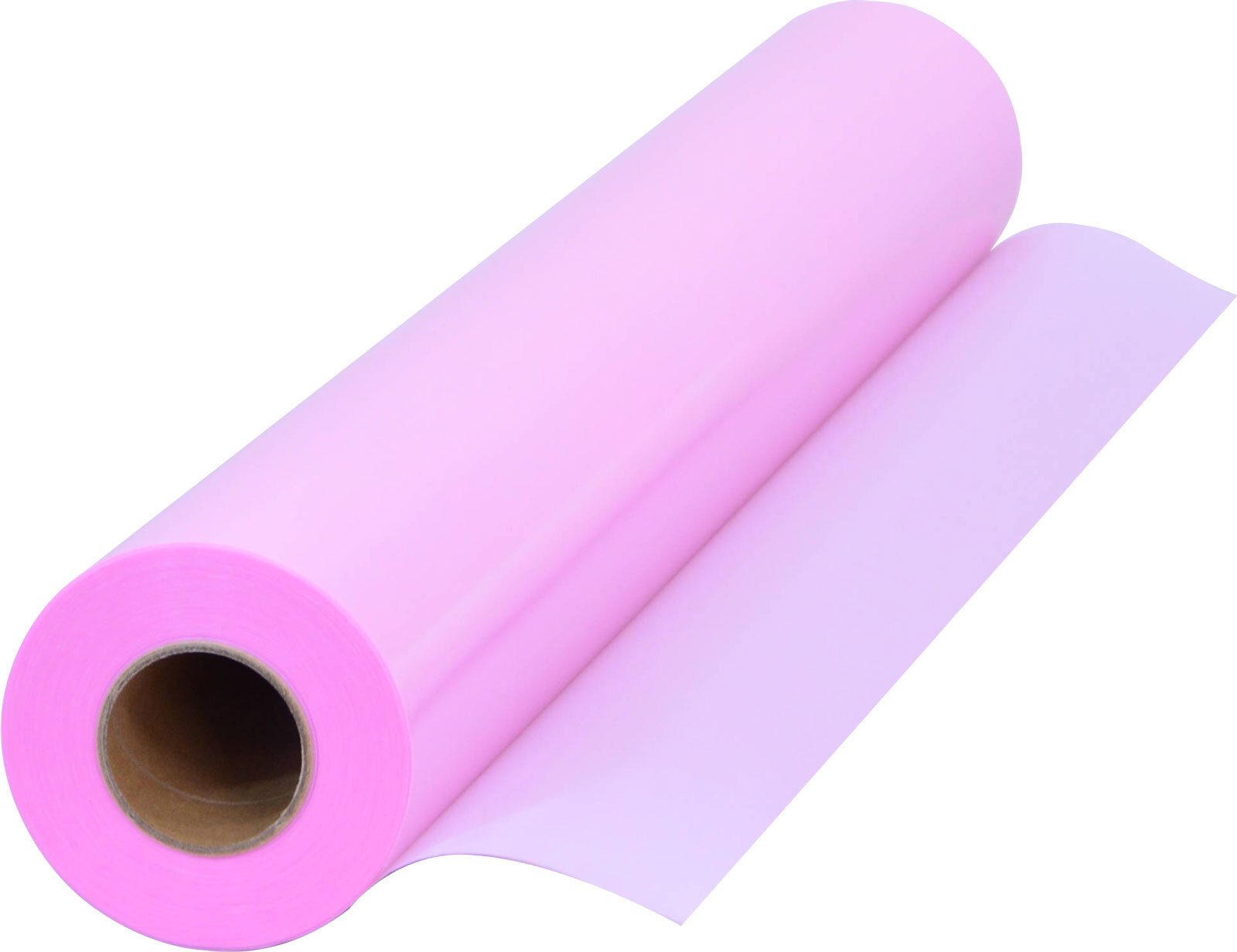

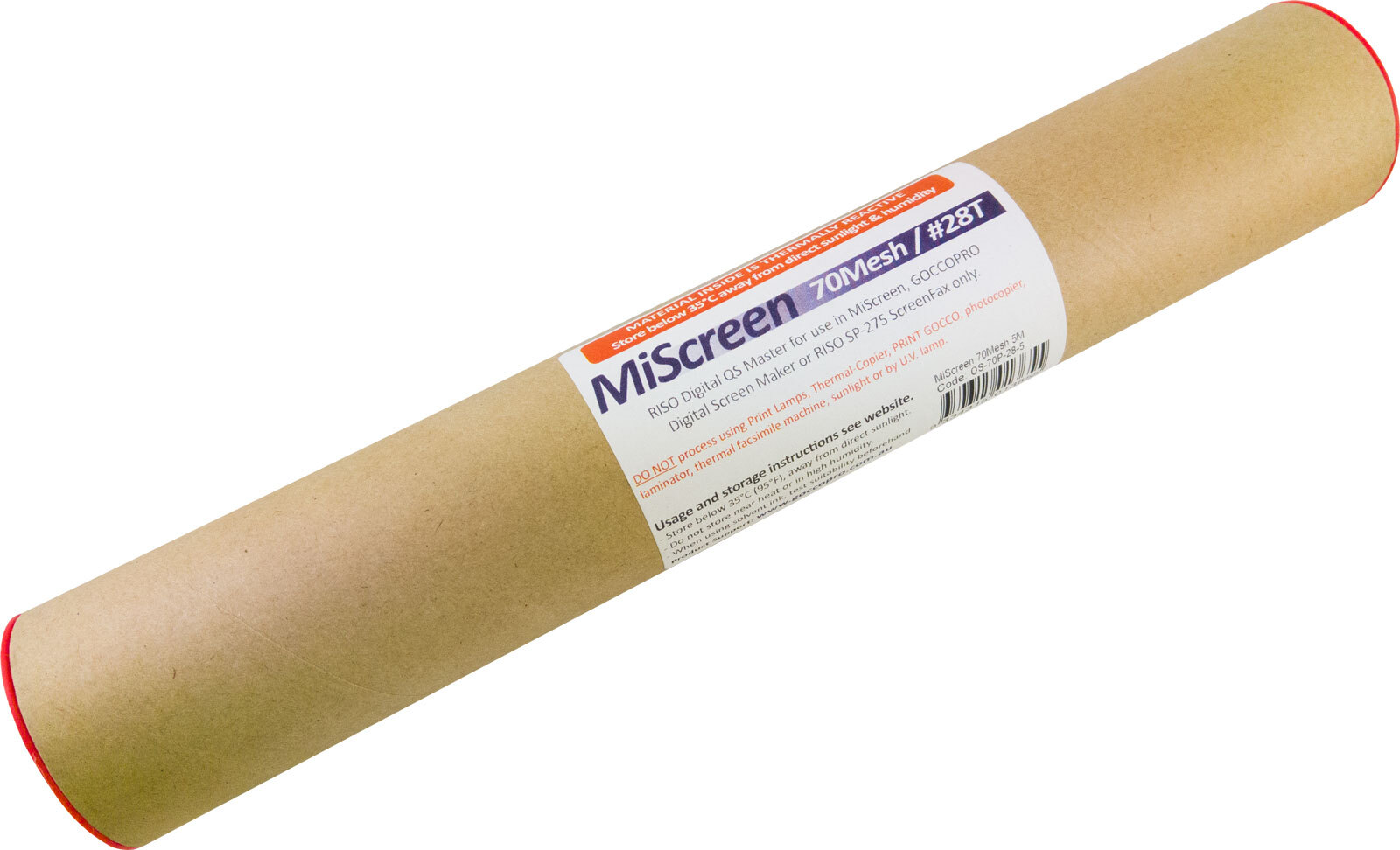

70Mesh RISO Digital QS Master for use in MiScreen model.

High ink flow mesh grade for supercover/ opaque inks and bases where a thick, solid print is required (higher ink flow will lower quality for fine lines).

Solid designs/ backgrounds onto textiles, t-shirts, fabrics, cotton, polyester, lycra, canvas, neoprene, poly-cotton blends.

Screen Costs

The 5M roll will create 20 x A5 Half Frames using a 25cm length /  12.2 x A4 Full Frames using 41cm length (or a combination of both).
- Half Frame Cost =$10.95
- Full Frame Cost = $17.96
For a detailed comparison of all screen costs, visit the Screen Costings page here .  .

Mesh Grade Explained

120Mesh is the sweet spot for almost all printing and applications using the MiScreen system, with sharp lines and solids available from the one grade onto all fabrics and materials, only non-absorbent materials (glass/ metal/ plastic), may require a 200Mesh to print ultra fine designs.

70Mesh / 28T - Coarse grade for high volume ink flow (lower quality) for supercover inks, high solid backgrounds on fabrics.
120Mesh / 47T - High versatile mesh for solids/ shading/ fine lines onto almost all materials and substrates, t-shirts, paper, ceramics, silk, cotton & polyester materials, canvas.
200Mesh / 79T - Designs onto glass, metal, plastics and gloss paper. Ultra fine designs, best for shading. (Not recommended for supercover onto fabrics).

The finer the mesh grade does not always provide a finer quality print onto your material, as some inks contain coarse pigments or bases that do not allow flow through 200Mesh screen without blocking/ drying, where as, using a coarse 70Mesh onto non-absorbent materials will allow greater ink flow, yet likely provide a coarser edged printing (mesh mark is visible).

Usage

When using solvent ink, test suitability beforehand.

'P' Digital QS Master is not suitable for use with Print Lamp or Thermal-Copier imaging systems.

Use only MiScreen, GOCCOPRO QS200, RISO ScreenFax SP-275, SP-265, SP-180 or RISO MG-11 models.

Storage

RISO QS Mesh is a thermal material and must be stored in a cool dry place away from sunlight and heat.
- Store below 35°C (95°F), away from direct sunlight.
- Do not store near heat or in high humidity.
