MiScreen Education Starter Package | Textiles/ Fabrics/ Canvas/ Paper/ Ceramics | RISO Digital Screen Maker (DSM)
Digital quality onto Texiles/ Paper/ Canvas/ Ceramics.
MiScreenSKU: DSM-MS120
120Mesh Education Package
The 120Mesh grade screen prints almost every application a school requires straight away. Paper, ceramics, fabrics, t-shirts, canvas, all in high quality solid and/or detailed prints.
Additional mesh grades are available as add-on's if required.

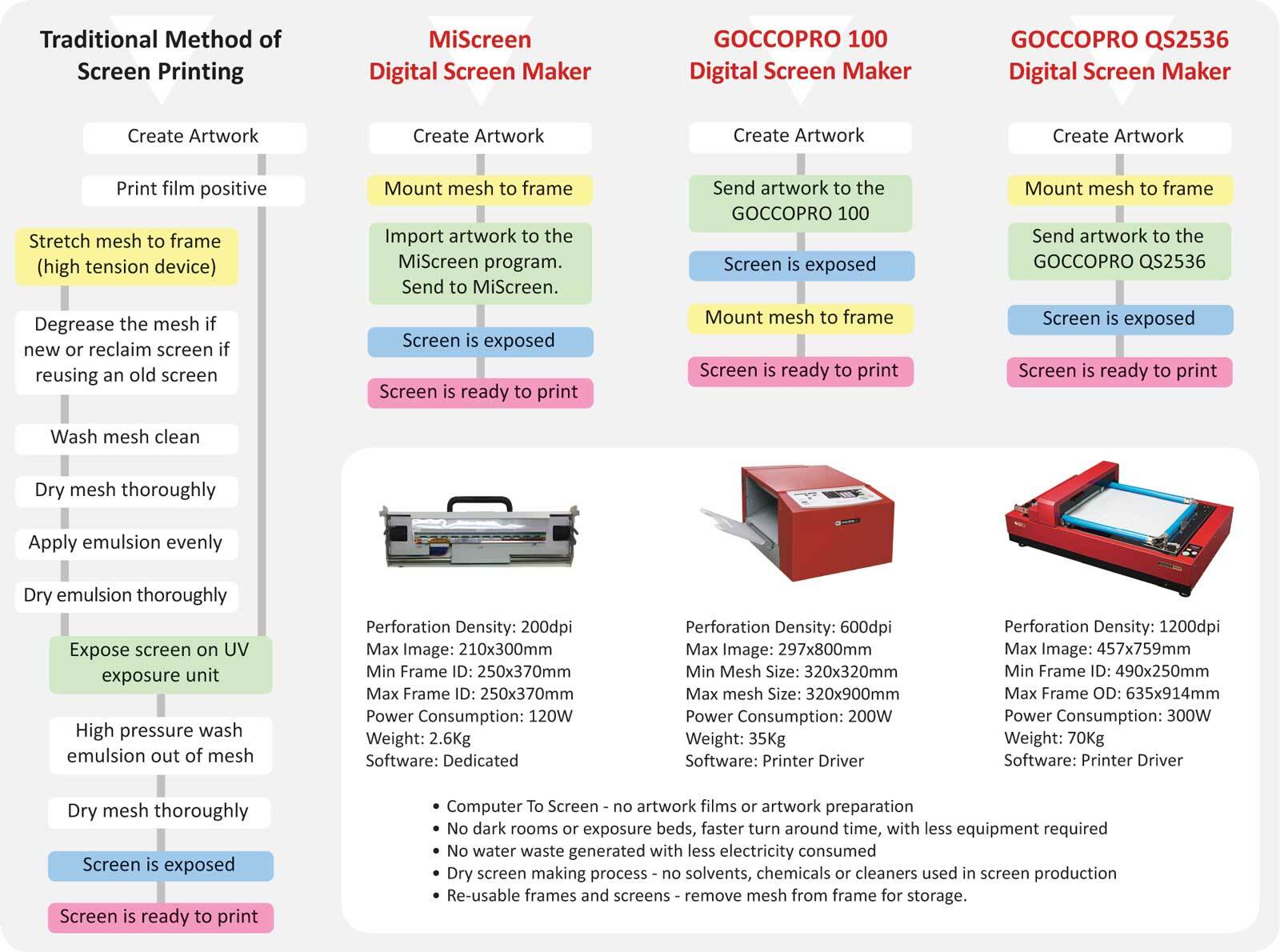

Digital Screen Making
MiScreen uses digital technology to provide fast, high quality results onto the new generation of RISO Digital QS ‘P’ type Mesh, for stronger more durable screens at a lower cost than previous ‘S’ type mesh.
Designs are transferred directly from computer to the MiScreen machine, eliminating photocopies and artwork transfers for improve quality, dramatically speeds screen imaging and lowers costs.

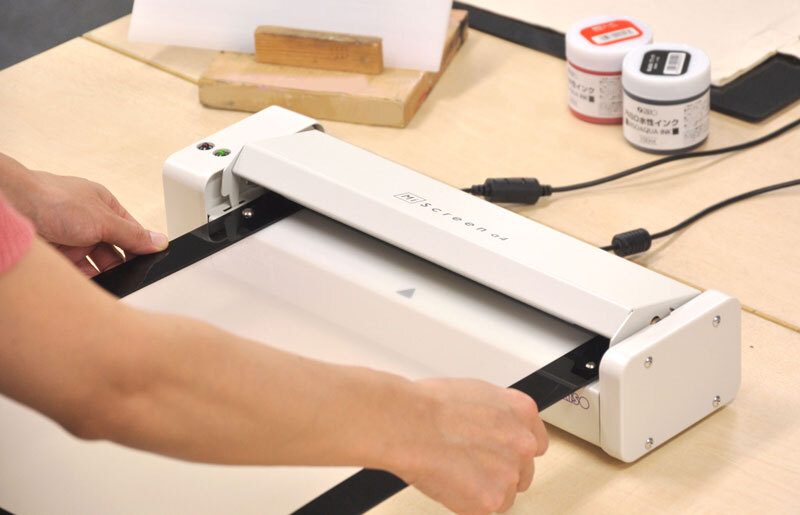

Just load your design into the dedicated software (free for PC & MAC), then simply send to the MiScreen with a click of a button, place your mesh (mounted to a frame) into the machine and lower the lid to begin creating your screen.
Fast, easy, low cost - Screen Printing Made Easy.
No Carbon Artwork
The discontinued (analogue) Thermal-Copier model required carbon photocopies for artwork, MiScreen eliminates all artwork by using 'cts' technology 'Computer to Screen'.
No films, no positives, no cutting, no emulsions, no dark rooms. cts replaces it all, with higher quality as there's a direct burn from image to screen.
Improved Quality & Lower Costs
Using the new RISO Digital 'P' type thermal mesh ('S' type discontinued) quality is improved and screen life is improved through a stronger mesh construction.
3 mesh grades are now available - 70Mesh, 120Mesh & 200Mesh - with 120Mesh the new default for all fabrics/ paper and general applications. 70Mesh for coarse designs and solid supercover prints, 200Mesh for ultra fine details onto plastics/ metal/ glass.
Pack contents listed under specifications tab.
RISO Digital 'P' type mesh
Screen Imaging: Digital Screen Maker - dry thermal screen imaging
Resolution: 203dpi
Artwork to imaged screen in less than 30 seconds.
Image Area: 210 x 300mm (onto 250 x 370mm Mesh)
Full Frame Size: ID: 250 x 370 (Image 210x300mm)
Half Frame Size: ID: 210 x 250 (Image 150 x 210mm)
PC Connectivity: Windows, Macintosh (dedicated software)
File Format: PDF, JPEG, PNG, BMP
Transport Damage must be notified prior to install/ usage.
- The product will be safely packaged and shipped.
- Upon receipt, please immediately check your package contents carefully.
- Where damage to the item occurs in transport, is MUST be reported within 24 hours of delivery.
- Where the customer fails to notify us of transport damage within the 24hour period, it is acceptance the customer forgoes all claims for damages, incorrect description, damaged product, incorrect product description and claim for transport damage.
The above conditions have been instigated due to fraudulent claims by customers for transport damage following improper unpacking/ usage/ handling of the product.
- The part remains warranted against faulty manufacture at all times, not improper usage by the customer.
Print & Frame Size
Max Print Size on Full Design Frame: 210x300mm
Max Print Size on Half Designs Frame: 150x210mm
Suitable Frame: FP-MS1/ FP-MS1-NT/ FP-MS2/ FM-MS2-NT
Suitable Squeegee: SQ-P3/ SQ-P6/ SQ-110/ SQ-170/ SQ-240

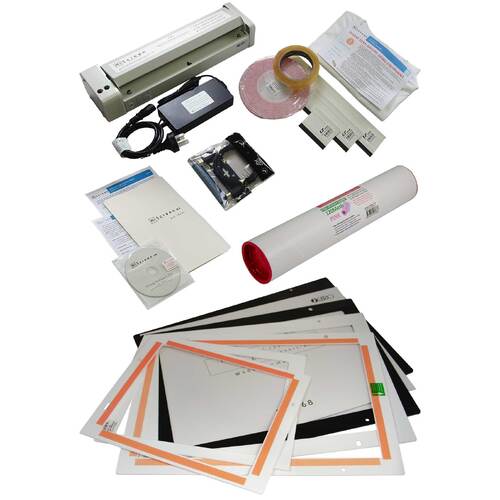

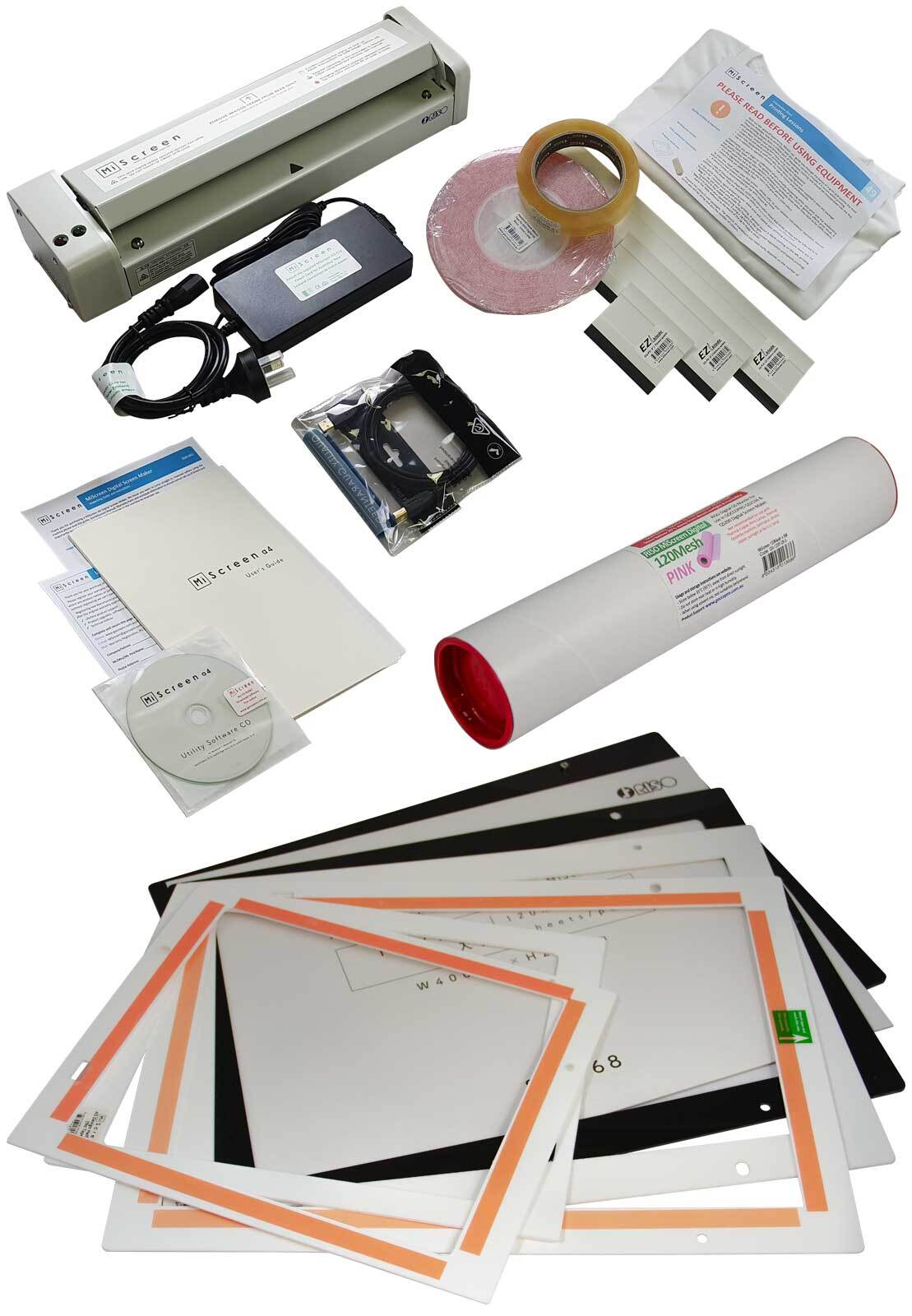

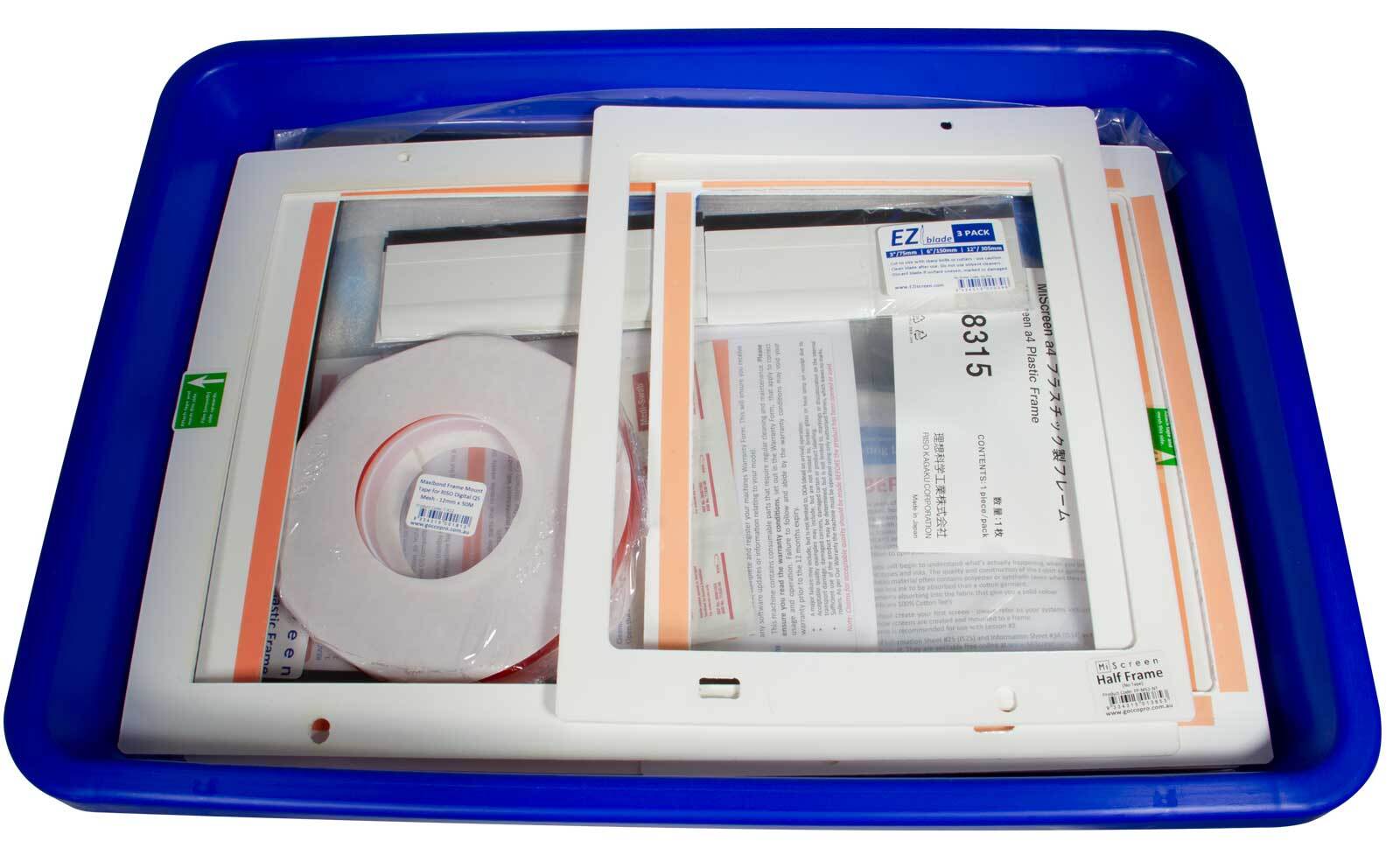

Kit Contents

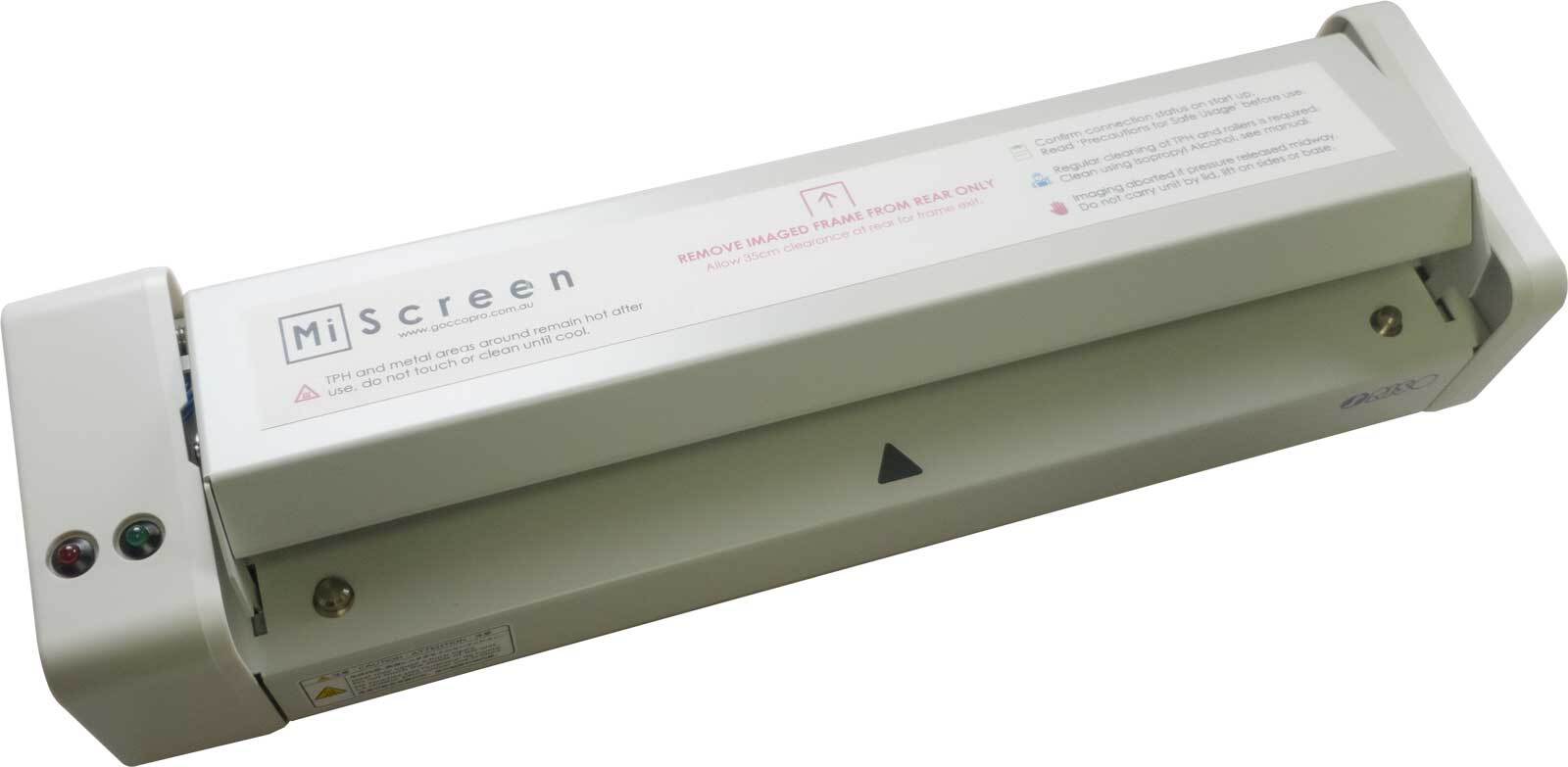

1 x RISO MiScreen A4 DSM Unit

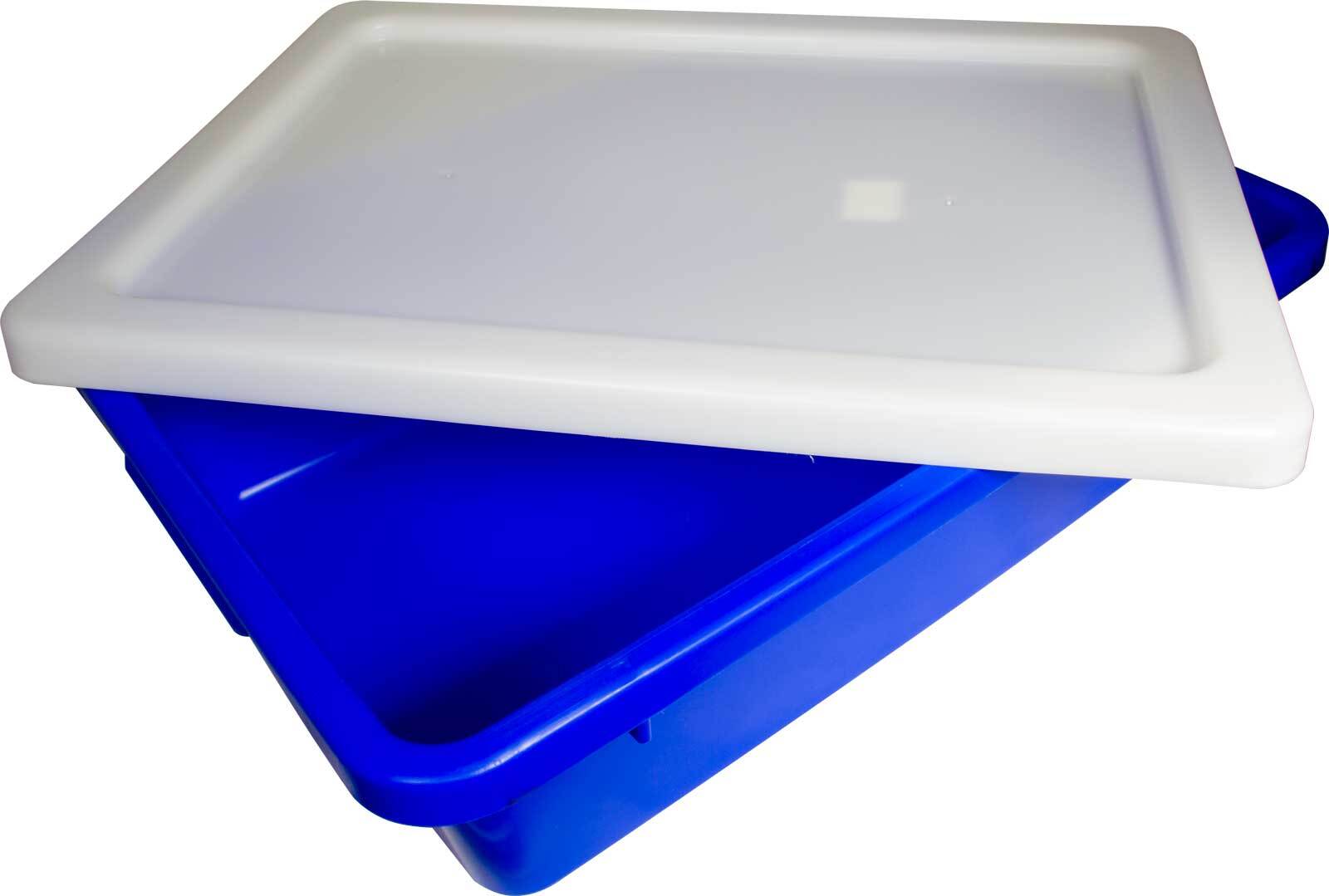

1 x MiScreen Storage Container with Lid
5 x MiScreen 120Mesh Pre-cut Sheets (S-7768)

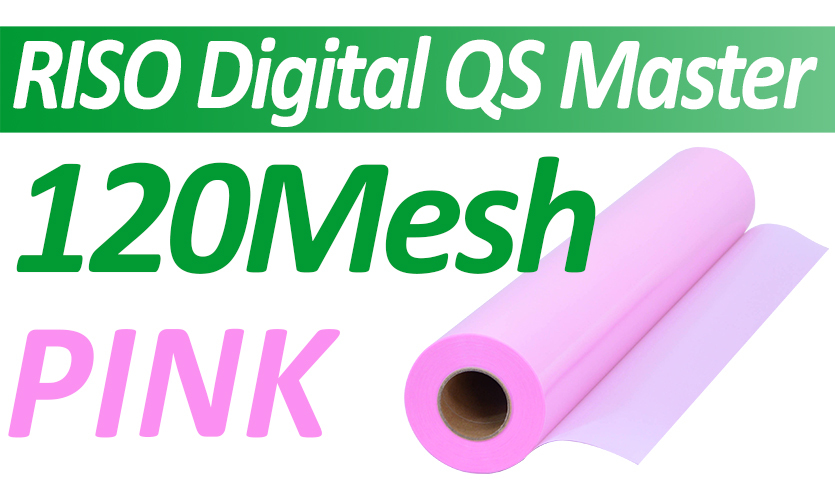

5 Metres x MiScreen 120Mesh (QS-120P-28-5)
1 x RISO MiScreen A4 Design Frame ID: 250x370mm (S-8315)
2 x MiScreen A4 Design Frame ID: 250x370mm (1 taped + 1 plain)
2 x MiScreen A5 Design Frame ID: 250x210mm (1 taped + 1 plain)
1 x RISO MiScreen A4 Printing Registration Board
1 x Red MaxiBond (Ultra Adhesion) Double Sided Tape (25M Package Sample Size)
1 x 3”/75mm EZIblade Squeegee
1 x 6”/150mm EZIblade Squeegee
1 x 12”/305mm EZIblade Squeegee
1 x Screen Masking Tape (T24)
NEHOC Printing Lesson #1 Standard Inks
1 x T-shirt Sample For Printing Lesson #1
1 x Power Transformer with Australian Cord
1 x USB Connection Cable
1 x MiScreen Instruction Book plus Software CD

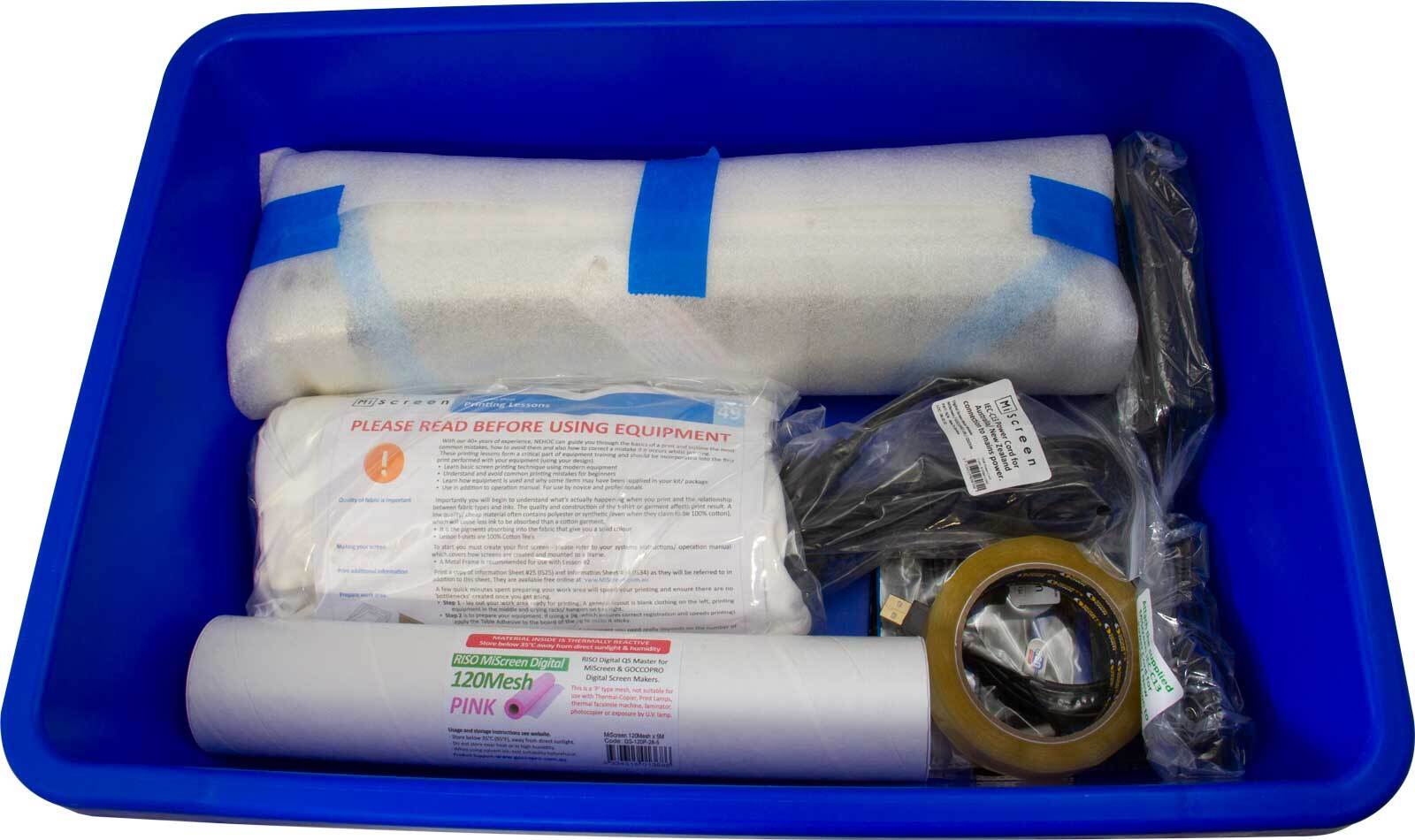

INCLUDES MiScreen Storage Container with lid.
SPECIAL OFFER
- SUPPLIED FREE 1 x RISO MiScreen Frame ID: 250x370mm (Plain)
Dimensions
Package LWH: 55 x 39 x 14cm | Package Weight: Approx. 7.2Kg
Shipping: 55 x 45 x 16cm | Shipping Weight: Approx 9.3Kg
| SKU | DSM-MS120 |
| Barcode # | 9334315020059 |
| Brand | MiScreen |
| Shipping Weight | 9.3000kg |
| Shipping Width | 0.550m |
| Shipping Height | 0.160m |
| Shipping Length | 0.450m |
| Shipping Cubic | 0.039600000m3 |
| Unit Of Measure | Pack |
