MiScreen Half Frame | Reusable | ID: 210x250mm | A5 Designs | No Tape
Attach mesh, image and print - plain no tape.
NEHOCSKU: FP-MS2-NT

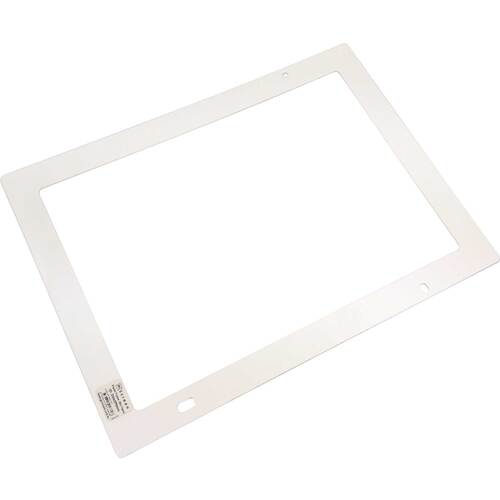

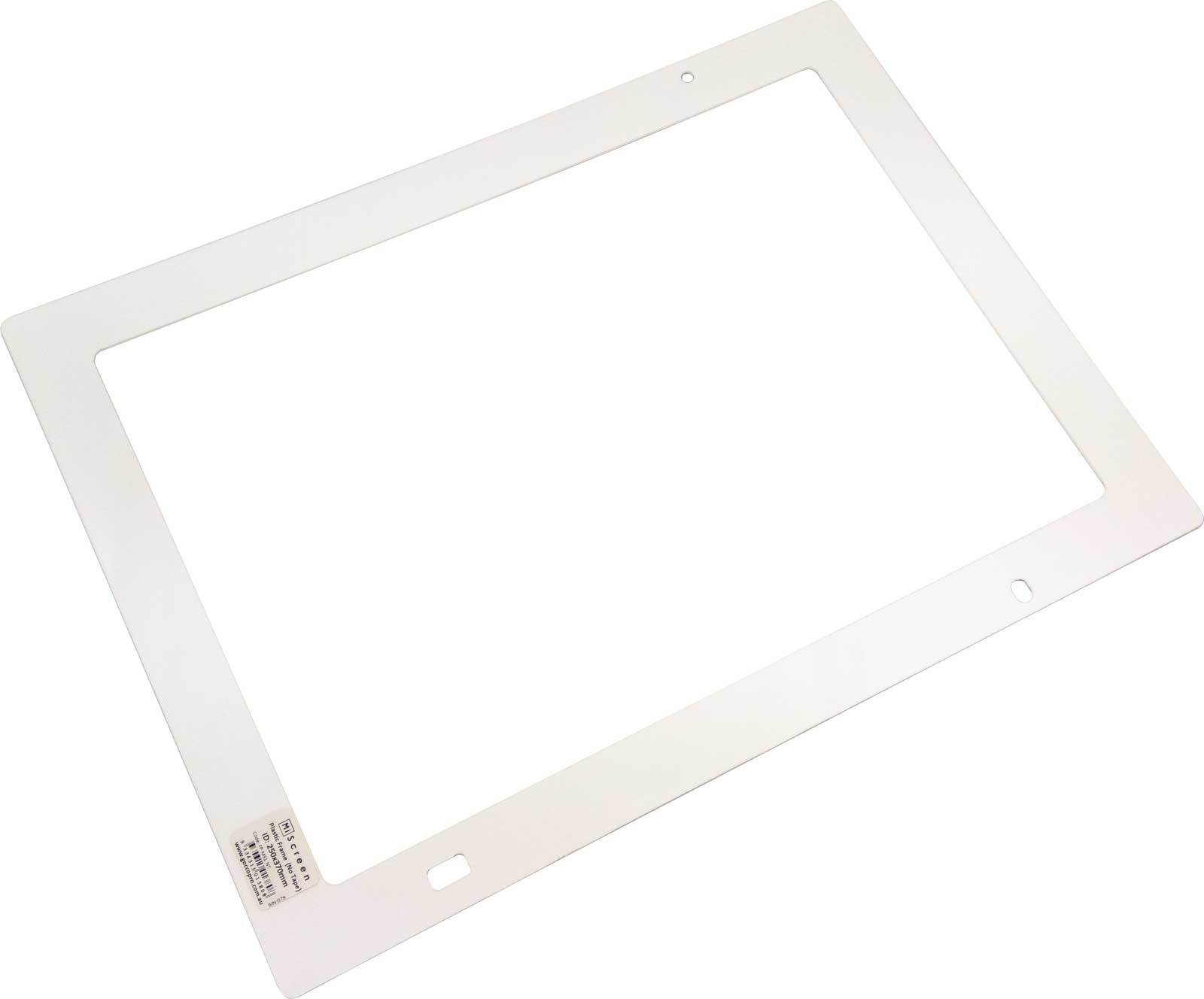

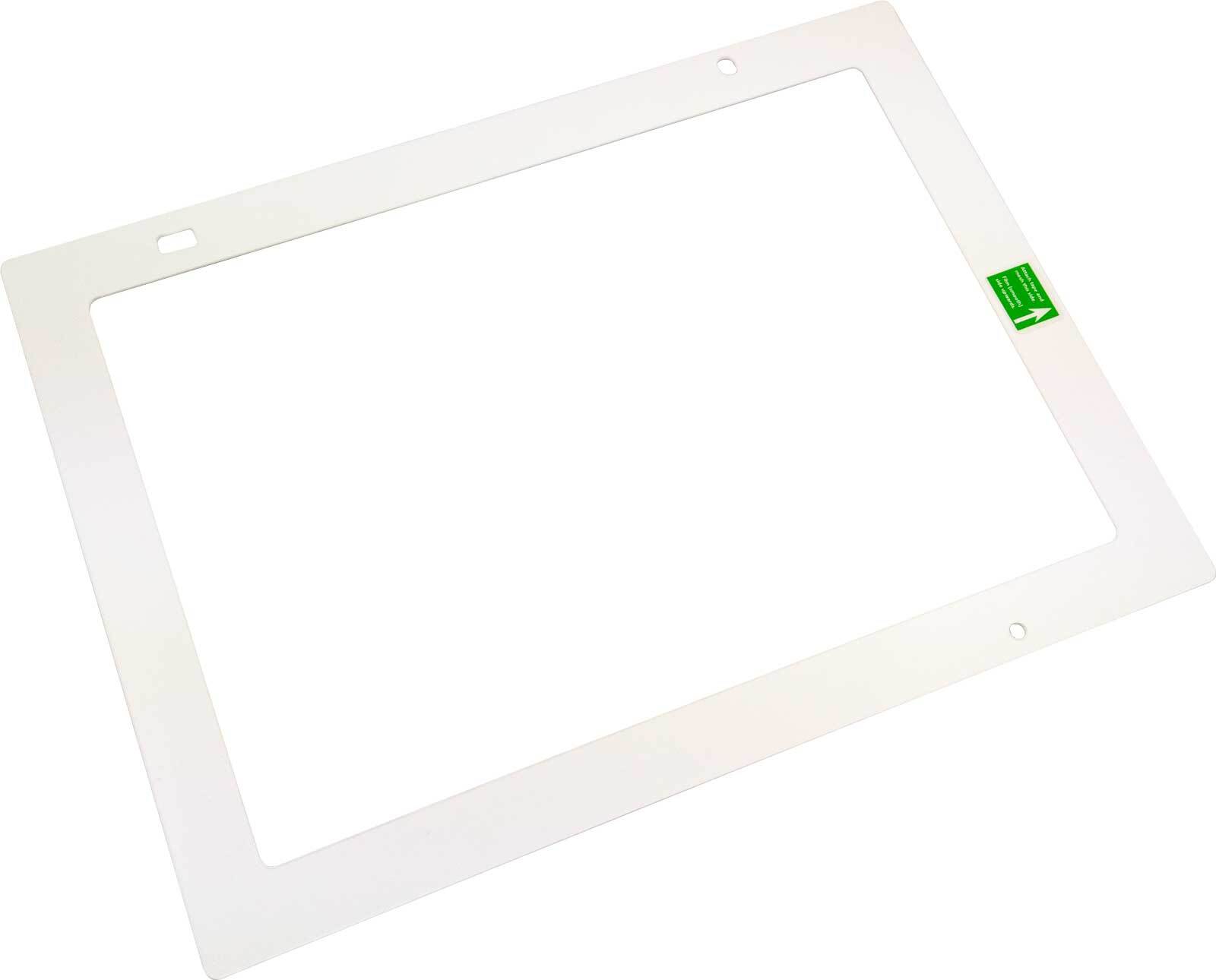

With internal dimensions of 210 x 250mm, this plastic frame is for use with RISO MiScreen Digital Screen Maker, imaging a half design 150x210mm (or 210x150mm) size.
Usage instructions for A5 Design Frame click here . .
Supplied plain with no tape for lower cost, simply apply Red MaxiBond Tape (or 18mm double sided tape) and mount.
Not recommended for off contact printing directly as the frame will flex.
- Simply add additional frames below to increase height
- Attach to Smaller Metal Frame (FM-180x250)
- Remove mesh from frame and attach to Metal frame directly
A5 Design Frame Usage
Designs must be registered at the top of the work area within the MiScreen software. The software does not make an A5 design only, it will continue to process a full A4, the user simply positions within the A5 area only and the cut out in the A5 Design Frames halts the imaging process.
Failure to re-position the design will result in a screen that does not image in correct position.
Option 1 (recommended)
Import your A5 design into the MiScreen Screen Making software.
Under the 'Position' menu, change from 'Centre' to 'Top', as pictured right.
This will position your A5 design within the top half of the workspace and in position for use.
Mount your mesh to the A5 Design Frame, send the Design to the MiScreen, insert frame and depress lid to begin imaging.
Download the Information Sheet on A5 Design Frame usage here . .
Option 2 - Manual Registration
Import your A5 design into the MiScreen Screen Making software.
Using your mouse, click and highlight the design to drag upwards towards the top of the work area as pictured right.
This will position your A5 design within the top half of the workspace and in position for use.
Mount your mesh to the A5 Design Frame, send the Design to the MiScreen, insert frame and depress lid to begin imaging.
Attaching MiScreen Digital Mesh
T-R12 - 12mm Red MaxiBond double sided tape is recommended.
T-T18 - 18mm Double sided tissue tape is also suitable. (12mm not recommended for MiScreen 'P' type Digital Mesh.)
Instructions for mounting RISO Mesh to a frame is detailed on Information Sheet #6, available for download here . .
Internal Dimensions: 210 x 250mm
External Dimensions: 300 x 310mm
Thickness: 1.5mm
Material: ABS Polystyrene Plastic
Taped: No
| SKU | FP-MS2-NT |
| Barcode # | 9334315013853 |
| Brand | NEHOC |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.310m |
| Shipping Height | 0.002m |
| Shipping Length | 0.250m |
| Shipping Cubic | 0.000155000m3 |
| Unit Of Measure | ea |
| Type | Plain No Tape |
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law (ACL). You are entitled to a replacement or refund for a major failure. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Should you receive a product that does not meet your expectations, you may return it for a refund or exchange - prior to opening or using the product.
Where products have been opened or used, suitability of usage has been determined and no refund is available for change of mind purchases on used products. This does not exclude warranty claims where product may be faulty or contain a manufacturing fault.
Something not right with your Frame? Visit the Warranty Support section.
